Capsulated solenoids have a long operating
life, being completely armored and insulated
from the environment. The core slides in oil,
therefore producing a reduced wear, a padding
position change and a good heat transfer.

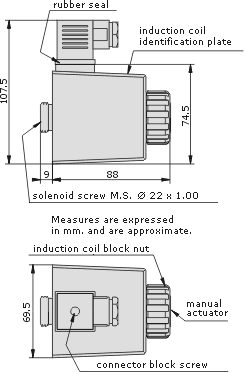

DIRECT
CURRENT SOLENOID - CETOP 3
-
Smooth commutations even when the commutation
frequency is high.
- Any intermediate core position without
affecting the induction coil.
- Weak sensitivity in low tension cases,
upon mechanical tension or limitation.
- Connections with alternating current
are possible by means of a rectifier.
- Type of protection (related to the
connector used) > IP 66.
- Feeding tolerance > ± 10
%
- Room temperature > -54º C
/ 60º C
- Type of insulation > H
TENSION
DC
MAX.
TEMP.(ROOM TEMP 25ºC)
NOMINAL
POWER (W)
TOLERANCE20º
C (OHM)± 10%
PART
NUMBER
INDUCTION
COIL
ELECTROMAGNET
12
V DC
116º
C
38
2,1
37510
- BL
7020
- EL
24
V DC
116º
C
38
8,3
37510
- BM
7010
- EM

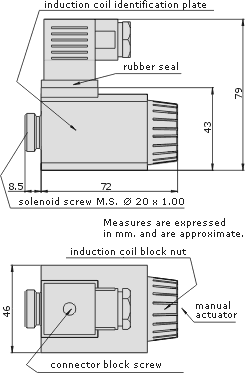

ALTERNATING
CURRENT SOLENOID - CETOP 3
- Simple electrical schemes possible.
- Fast commutation time.
- Reduced maintenance time in
relation to the commutation system
contacts.
- Type of protection (related
to the connector used) > IP
66.
- Feeding tolerance > ±
10 %
- Ambient temperature > -54º
C / 60º C
- Type of insulation > H
TENSION
AC
MAX.
TEMP.(ROOM TEMP 25ºC)
NOMINAL
POWER (W)
TOLERANCE20º
C (OHM)± 10%
PART
NUMBER
INDUCTION
COIL
ELECTROMAGNET
24
V / 50 HZ
100º
C
65
1,9
4131
- BF
7010
- EF
110
V / 50 HZ
123º
C
55
- 46
33,2
4131
- BG
7010
- EG
220
V / 50 HZ
123º
C
55
- 46
117,2
4131
- BH
7010
- EH

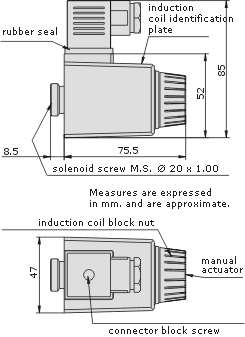

DIRECT
CURRENT SOLENOID - CETOP 5
-
Smooth commutations even when
the commutation frequency is high.
- Any intermediate core position
without affecting the induction
coil.
- Weak sensitivity in low tension
cases, upon mechanical tension
or limitation.
- Connections with alternating
current are possible by means
of a rectifier.
- Type of protection (related
to the connector used) > IP
66.
- Feeding tolerance > ±
10 %
- Room temperature > -54º
C / 60º C
- Type of insulation > H
TENSION
DC
MAX.
TEMP.(ROOM TEMP 25ºC)
NOMINAL
POWER (W)
TOLERANCE20º
C (OHM)± 10%
PART
NUMBER
INDUCTION
COIL
ELECTROMAGNET
12
V DC
116º
C
38
2,1
37500
- BL
38000
- EL
24
V DC
116º
C
38
8,3
37500
- BM
38000
- EM

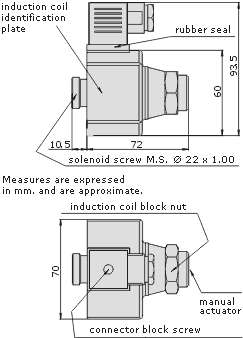

ALTERNATING
CURRENT SOLENOID - CETOP 5
- Simple electrical schemes possible.
- Fast commutation time.
- Reduced maintenance time in
relation to the commutation system
contacts.
- Type of protection (related
to the connector used) > IP
66.
- Feeding tolerance > ±
10 %
- Ambient temperature > -54º
C / 60º C
- Type of insulation > H
TENSION
AC
MAX.
TEMP.(ROOM TEMP 25ºC)
NOMINAL
POWER (W)
TOLERANCE20º
C (OHM)± 10%
PART
NUMBER
INDUCTION
COIL
ELECTROMAGNET
24
V / 50 HZ
117º
C
72
1,3
7225
- BF
7220
- EF
110
V / 50 HZ
134º
C = 115º C
122
- 103,5
16,9
7225
- BG
7220
- EG
220
V / 50 HZ
134º
C = 115º C
121,99
64,4
7225
- BH
7220
- EH

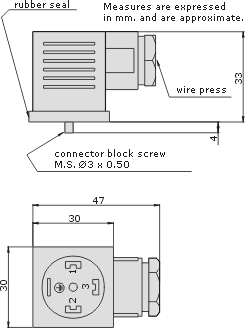

SOLENOID
CONNECTORS - DIN 43650 / ISO 4400
- Connector positioned every 90º
regarding to the valve.
- Maximum wire diameter allowed
by the wire press between >
Ø 6-10 mm.
- Connection wire section >
Ø 0,5 – 1,5 mm.
- Connection system for the wire
> Morseta per screw.
- Type of protection > IEP
144 Class IP 65.
