	Stop and exhaust valve
	For decompression. Board assembly. Size 3/8”, 3/4” NPT and 1” 1/4 BSPT.



	Board assembly exhaust valves for decompression are used in the hydraulic systems, where no equipment pressure is required to fulfill a function.. For example, to discharge an actuator with the system motionless, to activate o deactivate a pump, or part of a hydraulic circuit.

	- They are supplied in three sizes for board assembly: VF-P-32 with connection screw 3/8” NPT and1/2” NPT. VF-P-75 with connection screws 3/4” NPT and 1” NPT. VF-P125 with connections screw 1”1/4 BSPT and 1”1/2 BSPT. - Maximum working pressure: 210 kg/cm².

VF-P-##

	FIXING:
	Size: 32: 4 Whitworth Screws Ø 1/2”x2”1/2. Size: 75: 4 Whitworth Screws Ø 1/2”x2”3/4. Size: 125: 4 Whitworth Screws Ø 3/4”x3”1/4.
	BOARD ASSEMBLY:
	PM-RP-P-32-#-T

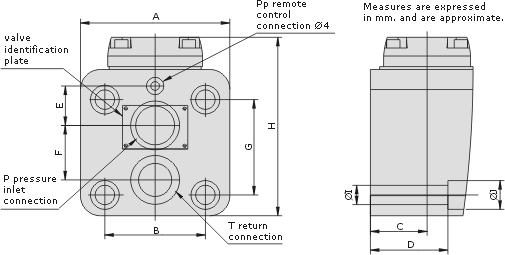

HYDRAULIC SCHEME

	ORDER CODE:

SIZE

A

B

C

D

E

F

G

H

I

J

CONNECTIONS
P and T

FLOW VOLUME
(l/min)

PRESSURE
(Kg/cm²)

WEIGHT
(Kg.)

32

82

54

29,2

46

22

25,5

54

109

13,5

20

Ø 11

85

210

2,5

75

104

70

39,5

54

27,5

38

66,5

124

13,5

20

Ø 23

180

210

5,2

125

132

92,5

44

64

30,2

44,5

6,7

139

20

26

Ø 28

460

210

8,4
