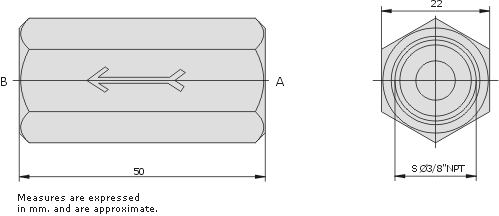

This valve basically works as follows:
A float is kept in a balanced position by
means of a coil, thus enabling free flow volume
passage from A to B in normal conditions of
B, which is obviously regulated.
When this condition is altered, the float
interrupts the passage from B to A. In order
to return operation to normal conditions,
it is necessary to cause a loss between the
valve and the actuator, in order to enable
the coil to recover the balanced position
of the float.
-
Caution. It must be connected over the actuator
in order to avoid an unrestricted charge loss
in case the equipment or the connection are
broken.
- Maximum work pressure: 320 kg/cm².
- Maximum flow volume: 50 l/min.
