These valves enable the flow volume passage
of a fluid or simply block it. They are fitted
with an easy-handling wheel to adjust the
circulation. They are directly installed in
line assembly, without the need of boards
or accessories.
- Supplied with screwed connections for different
pipeline measures.
- Maximum work pressure: 210 kg/cm²
- Maximum flow volume: 12 l/min .

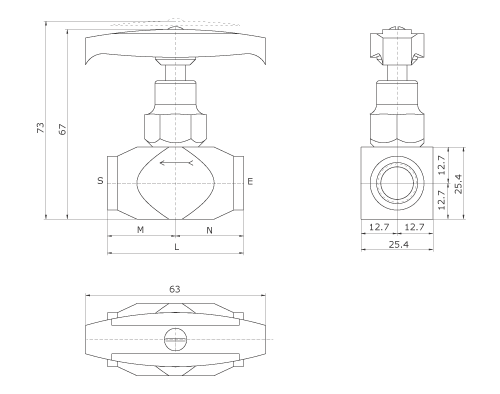

VCM-A/#
HYDRAULIC
SCHEME
ORDER CODE:
PRESSURE
(Kg/cm²)
FLOW
VOL.
(l/min)
WEIGHT
(Kg.)
210
12
0,250
#
L
M
N
A
INLET:
female S 1/4" NPT
OUTLET: female S 1/4" NPT
48
24
24
B
INLET:
female S 3/8" NPT
OUTLET: female S 3/8" NPT
55
27,5
27,5
C
INLET:
female S 3/8" NPT
OUTLET: female S 1/2" NPT
