	Pressure contact (presostate)
	Line assembly.



	This element is used within a hydraulic system where it is necessary to have an electric signal at a certain pressure.

	- Current: 5A - Tension: 220 vca - Maximum work pressure: 210 kg/cm².

PR-12

HYDRAULIC SCHEME

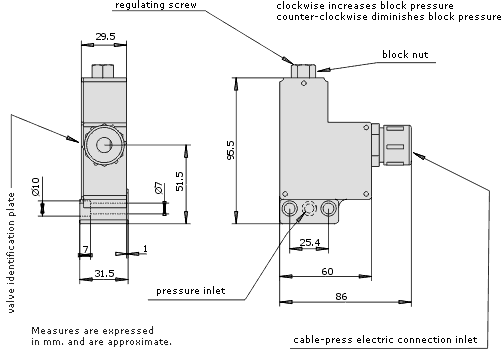

BOARD ASSEMBLY:

ORDER CODE:

PRESSURE (Kg/cm²)	WEIGHT (Kg.)
210	0,5
