End of stroke valves
With retention.
Just as its name states it, this valve is in charge of carrying out the end of stroke for towing with a hydraulic power inlet.
VCR-38

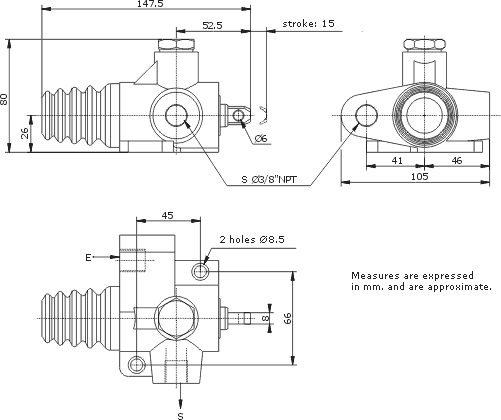

HYDRAULIC SCHEME
CORDER CODE:
MODEL
WEIGHT
(Kg)
CONNECTIONS
MAX. PRESSURE
(Kg/cm²)
FLOW VOL.
(l/min)
VCR-38
2,180
S
Ø 3/8" NPT
250
50
