  Counterbalance valves
  Simple and double holding. Line assembly. Model 75. Size SAE 8 3/4" x 16 UNF.




These are simple and double (holding) counterbalance valves for negative charges, assembled in an aluminum body, with task relation pilot 4:1 and zero passage; with 10% reset.

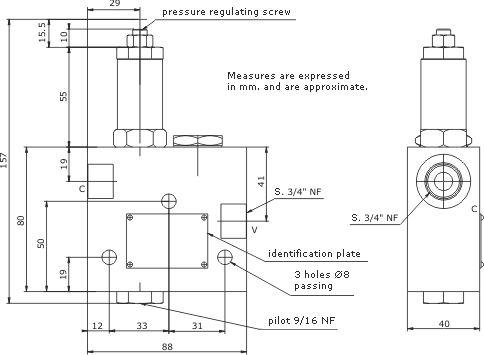

  VC-75-#-#


HYDRAULIC SCHEME
ORDER CODE:


MODEL
FILTERING (microns)

WORK TEMP.
INTERNAL LOSS
PRESSURE CONNECT. V and C (Kg/cm²)
FLOW VOLUME
(l/min)
VC-75-#-#
25
-10º a +75º
0
250
80

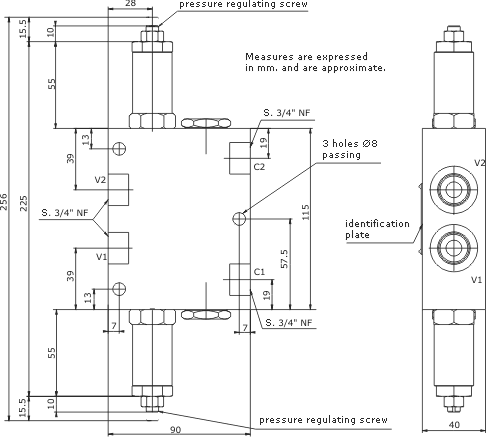

  2-VC-75-#-#


HYDRAULIC SCHEME
ORDER CODE:


MODEL
FILTERING (microns)

WORK TEMP.
INTERNAL LOSS
PRESSURE CONNECT. V and C (Kg/cm²)
FLOW VOLUME
(l/min)
2-VC-75-#-#
25
-10º a +75º
0
250
80
