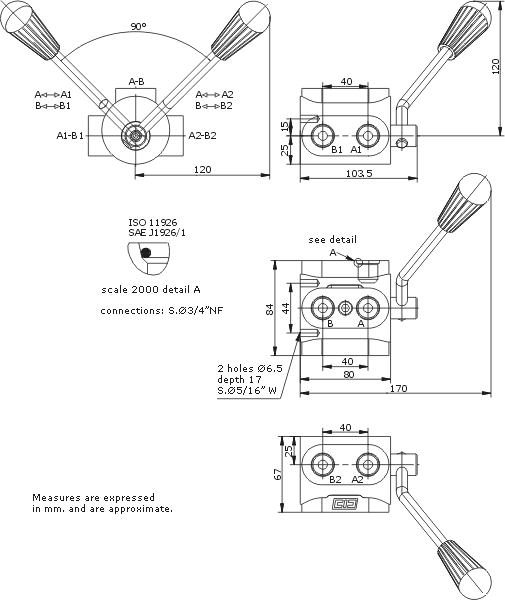

Two positions and 6 ways. Line Assembly. Sizes
3/4" NF.
This valve has a simple and direct activation
mechanism by means of a lever. It is aimed
at diverting the flow volume from an A entrance
towards an A1, from B to B1 or from A to A2
or from B to B2.
This enables to lead the fluid towards two
applications in the same circuit in a direct,
effective and rapid way.
-
Maximum work pressure: 250 kg/cm²
- Maximum flow volume: 50 l/min .
