Compensated pressure proportional with and
without retention. Line assembly.

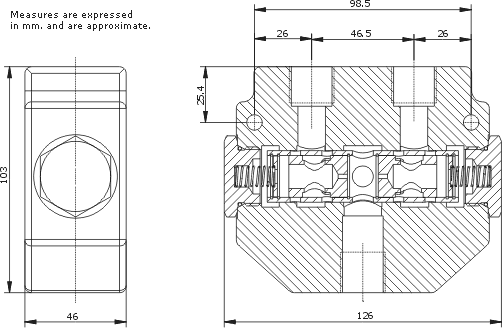

This is a compensated pressure flow dividing
valve. The standard models have an inlet port
(P) which is split in two equal outlet ports
(S1 and S2). It is available with special
rods, which split the flow volume in special
ranges, in accordance with what has been established.
As it is a compensated pressure valve, it
will keep a constant flow volume in each outlet
channel, even though the pressure variation
is completely different in both of them. The
direction of flow volume in the model VDC-#
cannot be reversed.

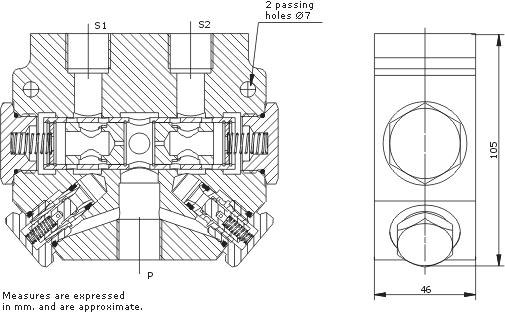

The VDCR-# models have the same functions
as the VDC-# model, but they have retention
valves that enable the reversion of free flow
direction from the outlet connections (S1
and S2) to the inlet connection (P). In this
case, the vale is not pressure compensated.
-
They are supplied in six different models:
VDC-50-30
VDC-50-60
VDC-75-114
VDCR-50-30
VDCR-50-60
VDCR-75-114
