For directional valves

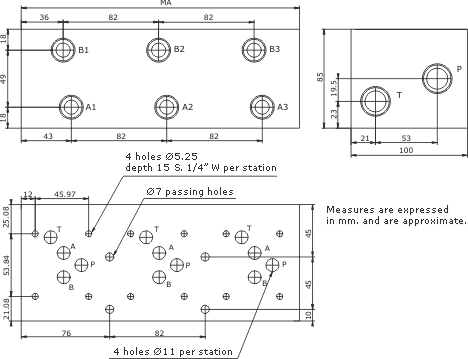

Series and parallel multiple connection boards. CETOP 5 / NG 10.
PM-M-SH-25-#V-T (series) / PM-M-SH-25-#V (parallel)
HYDRAULIC SCHEME
MÁX. PRESSURE
(kg/cm²)
MAX. FLOW VOL. (l/min)
350
48
MODEL
WEIGTH
(Kg)
MA
CONNECTIONS
A and B.
CONNECTIONS
P and T.
PM-M-SH-25-2V
10
157
S
Ø 1/2" NPT
S
Ø 3/4" NPT
PM-M-SH-25-2V-T
PM-M-SH-25-3V
15,8
239
PM-M-SH-25-3V-T
PM-M-SH-25-4V
21
321
PM-M-SH-25-5V
26,7
403
PM-M-SH-25-6V
32
485
