For directional valves
Series or parallel multiple connection boards. CETOP 3 / NG 6.
PM-M-SH-12-#V-T (series) / PM-M-SH-12-#V-P (parallel)
HYDRAULIC SCHEME

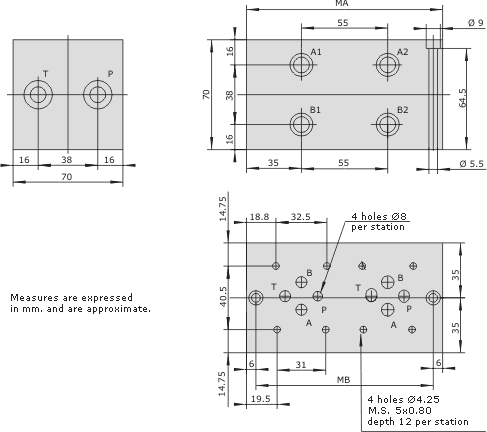

MODEL
WEIGHT
(Kg)
MA
MB
CONNECTIONS
A and B.
CONNECTIONS
P and T.
PM-M-SH-12-2V-#
4,4
125
113
S
Ø 3/8" NPT
S
Ø 1/2" NPT
PM-M-SH-12-3V-#
6,2
180
162
PM-M-SH-12-4V-#
8
235
223
PM-M-SH-12-5V-#
9,8
290
278
PM-M-SH-12-6V-#
11,6
345
333
PM-M-SH-12-7V-#
13,4
400
388
PM-M-SH-12-8V-#
15,2
455
443
