	Insertional cartridge valves
	With screw. Unified cavity retention valves. Models 08, 10 and 12. Sizes 3/4”, 7/8”, 1” 1/16 UNF.

These valves can be defined as no-return valves with a conic piston and unified cavity opening. They enable free flow in one direction, while they restrain it in the opposite direction.

- Free flow opening pressure:
N-0.35 kg/cm²
M-2.50 kg/cm²
P-5.00 kg/cm²
- Maximum work pressure: 350 kg/cm²
RHI-08 – Max. flow volume 50 l/min
RHI-10 – Max. flow volume 80 l/min
RHI-12 – Max. flow volume 120 l/min

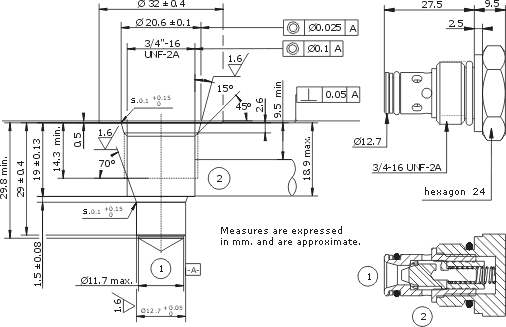

RHI-08-#-A

HYDRAULIC SCHEME

	ORDER CODE:

PRESSURE (Kg/cm²)	FLOW VOL. (l/min)	EXTERNAL SEALS	ASSEMBLY TORQUE (Nm)	WEIGHT (Kg)
350	80	O ring 2-114> 1 unit O ring 2-012> 1 unit Support 8-012 > 1 unit	27 / 30	0,065

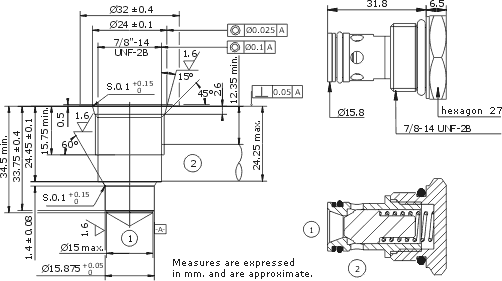

RHI-10-#-A

HYDRAULIC SCHEME

	ORDER CODE:

PRESSURE (Kg/cm²)	FLOW VOL. (l/min)	EXTERNAL SEALS	ASSEMBLY TORQUE (Nm)	WEIGHT (Kg)
350	80	O ring 2-116 > 1 unit O ring 2-014 > 1 unit Support 1,1x12,9x15,8 > 1 unit	50 / 60	0,075

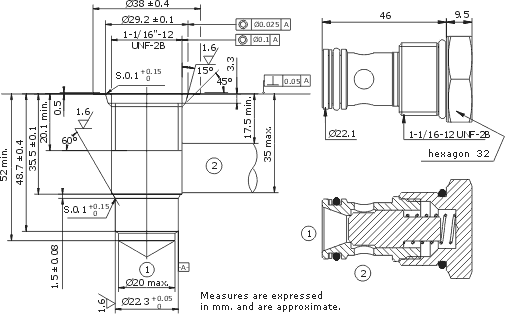

RHI-12-#-A

HYDRAULIC SCHEME

	ORDER CODE:

PRESSURE (Kg/cm²)	FLOW VOL. (l/min)	EXTERNAL SEALS	ASSEMBLY TORQUE (Nm)	WEIGHT (Kg)
350	120	O ring 2-119 > 1 unit O ring 2-115 > 1 unit Support 8-115 > 1 unit	75 / 85	0,165
