With internal screw. Retention
valve. Model 25. Size 1/4” BSP.
This is a retention valve which enables free
flow volume in direction and blocks it in
the opposite sense.

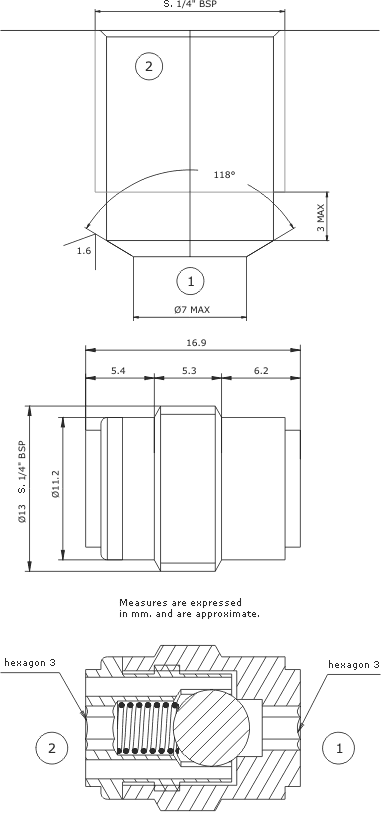

It is assembled on a screwed cavity with a
seat at 118° to ensure perfect retention.
It is available with two places for O’ring
thus enabling assembly in both directions.
It can be assembled in any position.
- Maximum work pressure: 350 Kg/cm²
- Maximum flow volume: 20 l/min
- Opening pressure in free direction: 1,5
Kg/cm²
- Weight: 0,015 Kg
- Torque: 6 Nm
