Insertional cartridge valves
With screw. Unified cavity. Pressure regulation valve (direct action). Model 08. Size 3/4” UNF.
Th
- P

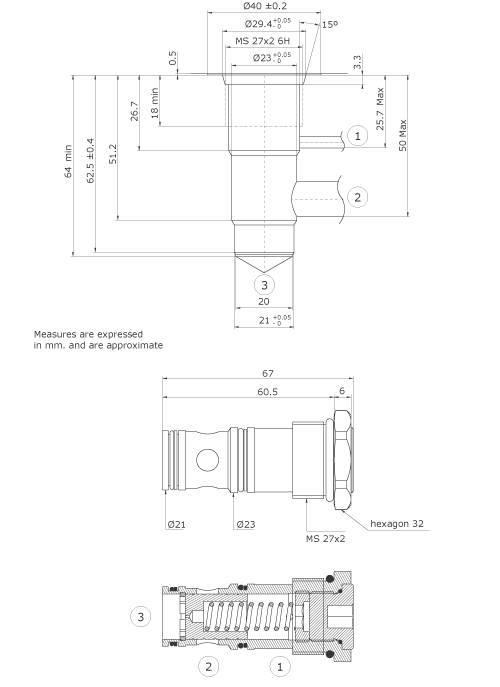

VDI-27
HYDRAULIC SCHEME
ORDER CODE:
PRESSURE (Kg/cm²)
FLOW VOL.
(l/min)
EXTERNAL SEALS
ASSEMBLY
TORQUE (Nm)
WEIGHT
(Kg)
350
200
O ring 2-119> 1 unit
O ring 2-017> 1 unit
O ring 2-018> 1 unit
Support 8-018> 1 unit
Support 8-017> 1 unit
75 / 85
0,200
