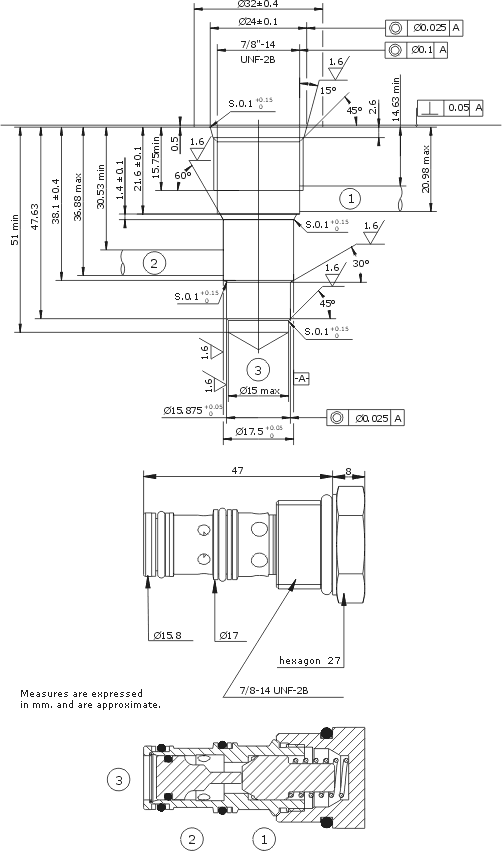

With screw. Unified cavity, commanded retention
valve. Model 10. Size 7/8” UNF.
Commanded retention valves with screwed insertional
cartridge enable the fluid to flow in one
direction, unless there is a piloting pressure
in the opposite channel so that the backward
flow is produced freely. They are aimed at
securing blocking in an actuator, be it on
one or both directions. It is supplied with
three free flow pressures.
- Free
flow opening pressure:
N-0.35 Kg/cm².
M-2.50 kg/cm².
P-5 Kg/cm².
- Maximum work pressure: 350 kg/cm².
- Maximum flow volume 80 l/min.
RHCI-10-#-A
HYDRAULIC
SCHEME
ORDER
CODE:
PRESSURE
(Kg/cm²)
FLOW
VOL.
(l/min)
EXTERNAL
SEALS
ASSEMBLY
TORQUE (Nm)
WEIGHT
(Kg)
350
80
O
ring 2-114 > 1 unit
O ring 2-015 > 1 unit
O ring 2-116 > 1 unit
Support 1,1x12,9x15,8 > 2
units.
Support 1,3x14,5x17,33 >
1 unit
