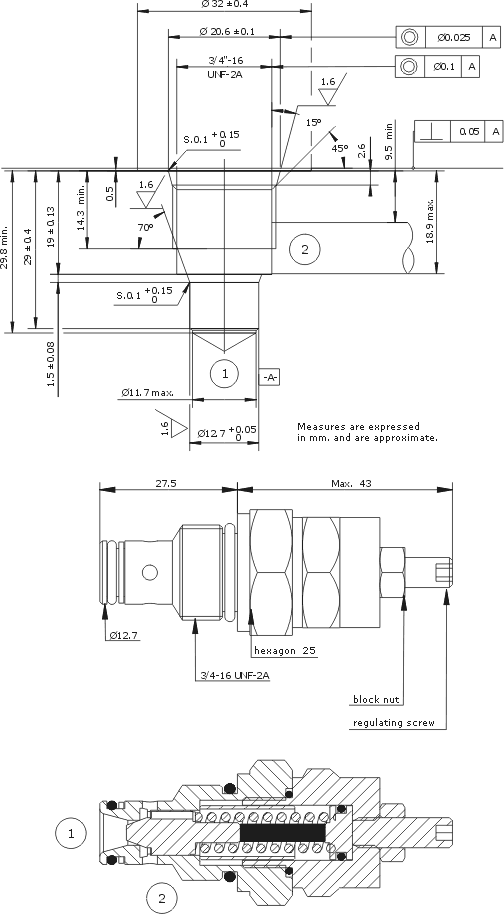

With screw. Unified cavity. Pressure regulation
valve (direct action). Model 08. Size 3/4”
UNF.
This is a direct action pressure regulation
valve, which can be regulated very easily
and has a very noiseless performance. Therefore,
it is particularly suitable to carry out works
that demand a high level of continuity.
- Pressure ranges
1-50 Kg/cm².
2-140 Kg/cm².
3-250 Kg/cm².
- Maximum work pressure: 250 kg/cm².
- Maximum flow volume 20 l/min.
RPI-08-#-A
HYDRAULIC
SCHEME
ORDER
CODE:
PRESSURE
(Kg/cm²)
FLOW
VOL.
(l/min)
EXTERNAL
SEALS
ASSEMBLY
TORQUE (Nm)
WEIGHT
(Kg)
250
20
O
ring 2-114 > 1 unit
O ring 2-012 > 1 unit
Support 1,14x9,68x12,38 >
1 unit
