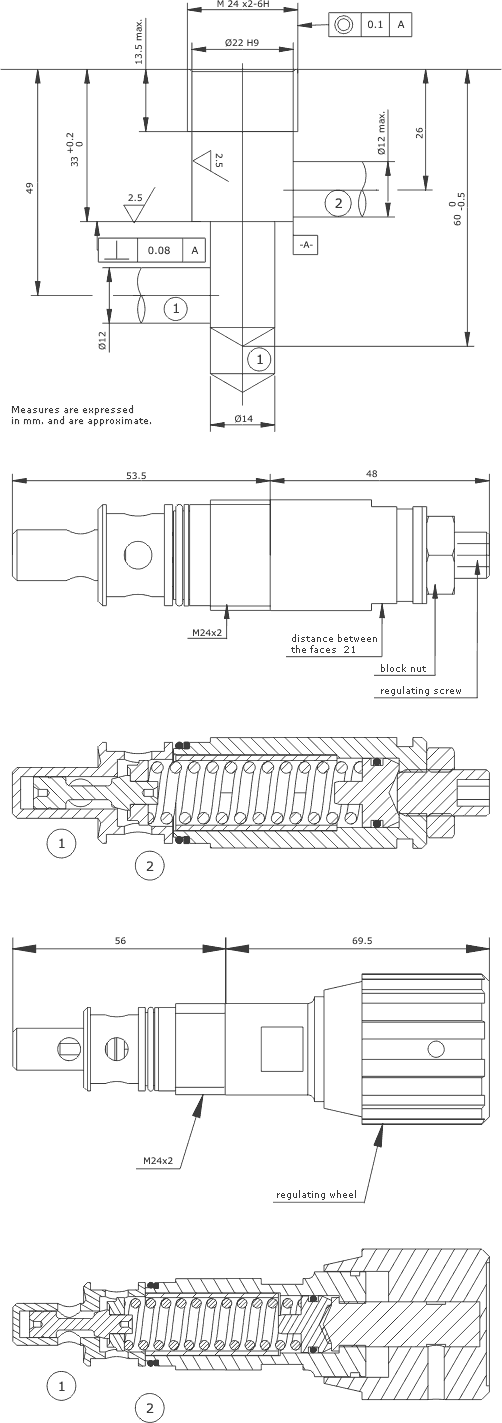

With screw. Pressure regulation valves (direct
action). Model RPI-10.
RPI-10-#-# is a direct action valve which
offers two important safety characteristics
in its performance, in order to protect the
equipment to which it is attached to:
- It prevents the valve operator from regulating
it to a higher pressure than the one indicated
in the catalog, since it has a mechanical
internal limit, thus preventing coil compression
beyond the specified limits.
- The internal mechanical limit prevents line
P blocking due to pressure peaks.
- - Pressure ranges:
1-50 kg/cm²
2-120 kg/cm²
3-320 kg/cm²
- Maximum work pressure: 320 kg/cm²
- Maximum flow volume: 40 l/min
