Insertional cartridge valves

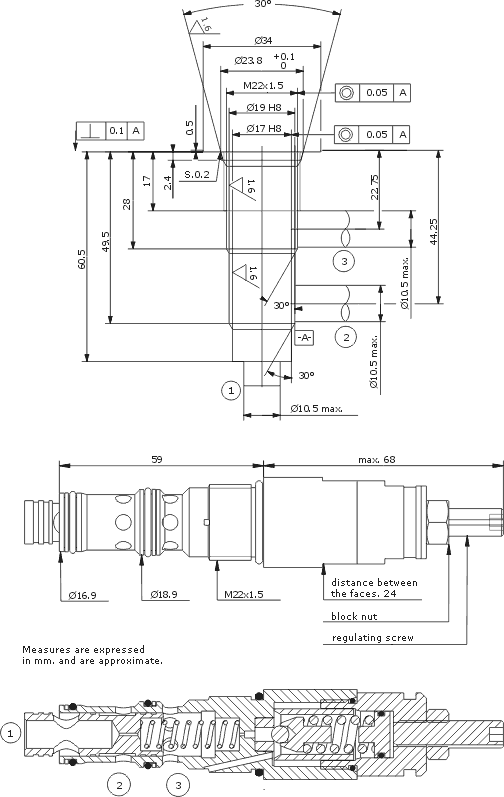

With screw. Sequence valve. Model VSI-20.
These valves are especially suitable for those systems where the pressure from the secondary actuator is enough.
- - Pressure ranges configuration
1-60 kg/cm².
2-120 kg/cm².
3-250 kg/cm².
- Maximum work pressure: 320 kg/cm².
- Maximum flow volume: 90 l/min.
VSI-20-#
HYDRAULIC SCHEME
ORDER CODE:
PRESSURE (Kg/cm²)
FLOW VOL.
(l/min)
EXTERNAL SEALS
ASSEMBLY
TORQUE (Nm)
WEIGHT
(Kg)
320
90
O ring 2-014 > 1 unit
O ring 2-016> 1 unit
O ring 2-019> 1 unit
Support 1,25x14,5x16,9 > 1 unit
Support 1,25x16,4x18,9 > 1 unit
30 / 40
0,25
