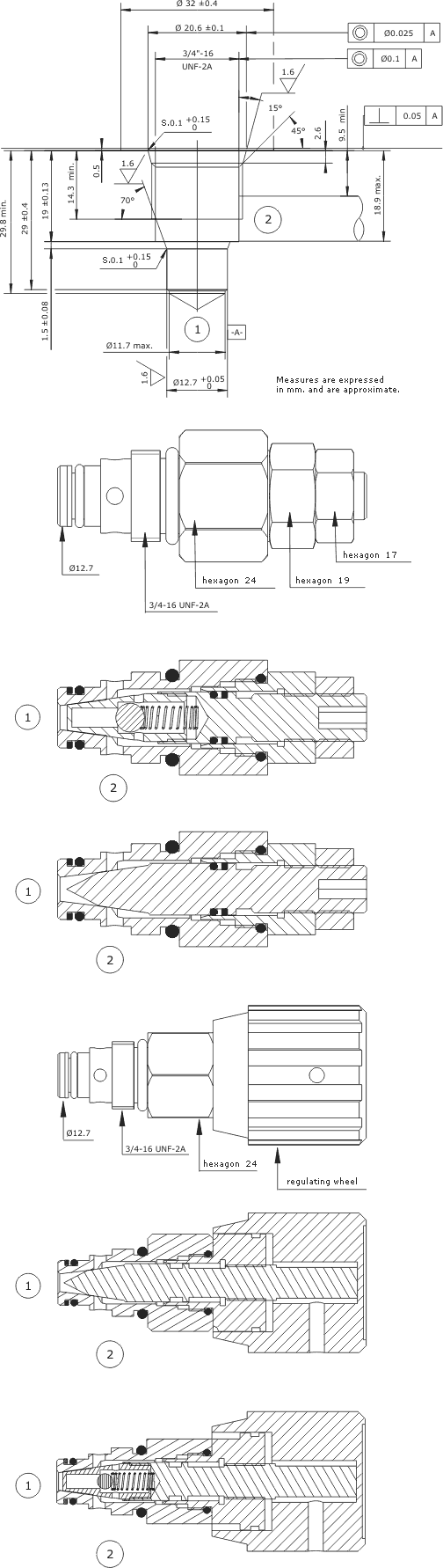

Unified cavity. Flow regulation valve. Uni-directional
and bi-directional. Model 08. Size 3/4”
UNF.
These valves are supplied in two models:
Uni-directional: This valve enables regulating
the flow volume speed through a strangulation
that can be regulated in a single direction.
Bi-directional: Carries out the same function
of the uni-directional valve; however, flow
volume is regulated in both directions.
- Maximum work pressure: 350 kg/cm².
- Maximum flow volume: 50 l/min.
VRCI-08-#-A
HYDRAULIC
SCHEME
ORDER
CODE:
PRESSURE
(Kg/cm²)
FLOW
VOL.
(l/min)
EXTERNAL
SEALS
ASSEMBLY
TORQUE (Nm)
WEIGHT
(Kg)
350
50
O
ring 2-114 > 1 unit
O ring 2-012 > 1 unit
Support 8-012 > 1 unit
