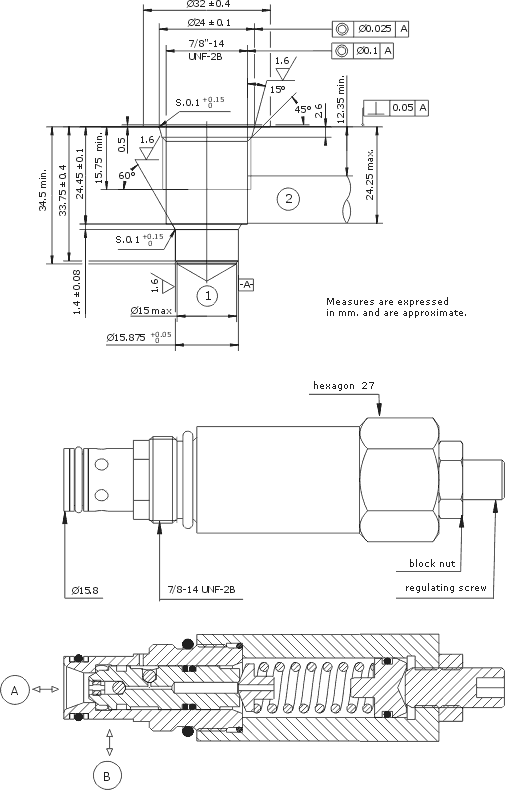

With screw. Unified cavity, bi-directional
maximum pressure valve. Model 10. Size 7/8”
UNF.
These reliefvalves are developed to limit
pressure in both directions. Pressure control
on line A (from connection A to connection
B) is directly activated. Control on line
B (from B to A) is the result of a differential
area action which generates a difference in
pressure of approximately 5 to 10 kg/cm²
in relation to the regulation value set in
the valve. These valves are typically used
to protect hydraulic engines motion in both
directions.
- Maximum work pressure: 275 kg/cm².
- Maximum flow volume: 80 l/min.
- Maximum filtration: 20 microns.
VPMI-10-#-A
HYDRAULIC
SCHEME
ORDER
CODE:
PRESSURE
(Kg/cm²)
FLOW
VOL.
(l/min)
EXTERNAL
SEALS
ASSEMBLY
TORQUE (Nm)
WEIGHT
(Kg)
275
50
O
ring 2-116> 1 unit
O ring 2-014> 1 unit
Support 8-012 > 1 unit
