  Commutation valves
  Line assembly.


These are three-channel commutation valves which enable to make a single-channel supply, selecting the pressure of two different channels alternatively
It prevents oil passage between high and low pressure. This valve is typically used in hydraulic brake commands and manometers connections.




  VDV-25

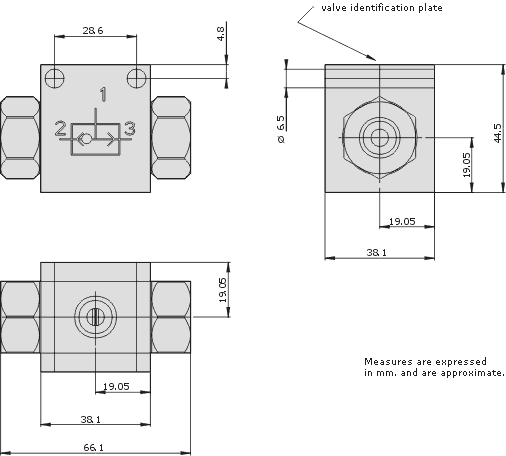

HYDRAULIC SCHEME
WEIGHT:
  0,5 Kg
CONNECTIONS:
  Thread Ø 1/4" NPT
