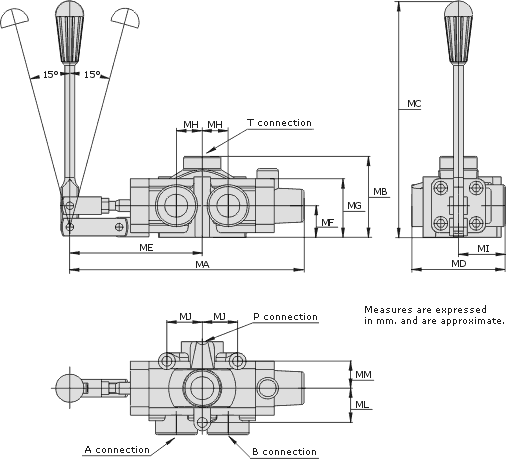

Line
assembly. Models: 17-75, 100 and 150. Sizes:
3/4" and 1" NPT y 1" 1/2 BSPT.
Manual
command valves are produced in two, three
and four tracks and in three sizes depending
on the different flow volumes:
- HM-17-75-#-#-L model with 3/4” NPT
screwed connections for a maximum flow volume
equal to 80 l/min and a maximum pressure equal
to 210 Kg/cm².
- HM-17-100-#-#-L model with 1” NPT
screwed connections for a maximum flow volume
equal to 180 l/min and a maximum pressure
equal to 210 Kg/cm².
- HM-17-150-#-#-L model with 1”1/2 BSPT
screwed connections for a maximum flow volume
equal to 650 l/min and a maximum pressure
equal to 210 Kg/cm².
These three models combined with ten different
rods and with a varied possibility of controls
constitute a wide range of solutions for the
most sophisticated hydraulic systems.
- Lever in four different positions:
- Different assembly versions:
Two-positions P>A and B>T coil-return
option (A)
Two-positions P>B and A>T coil-return
option (B)
Three-positions coil-return option (C)
Two-positions mechanical retention without
coils option (D)
Three-positions mechanical retention without
coils option (E)
