and board assembly. Models 32, 75 and 125.
Sizes: 3/8”, 3/4” NPT and 1”1/4
BSPT.
Commanded retention valves are hydraulically
blocked and are supplied in two versions:
connection with a screw for line assembly
on the hydraulic pipe and board assembly according
to CETOP standards. These valves grant unidirectional
retention valves the possibility to unblock
them and allow a free flow by means of an
external pilot. At rest, the retention float
is closed by means of a constant-pressure
coil, thus sending pressure to the piloting.
Said pilot is activated on top of the retention
float enabling free flow. There are two kinds
of retention floats: in the first case, simple
float with decompression. The piloting pressure
must be 40% of the blocked pressure. In the
case of the float with decompression, the
piloting pressure should not exceed 10% of
the blocked pressure.
- Oil-flow block in one sense.
- Enables backward flow in the same sense,
where the hydraulic pilot is activated
- Line assembly; three sizes:

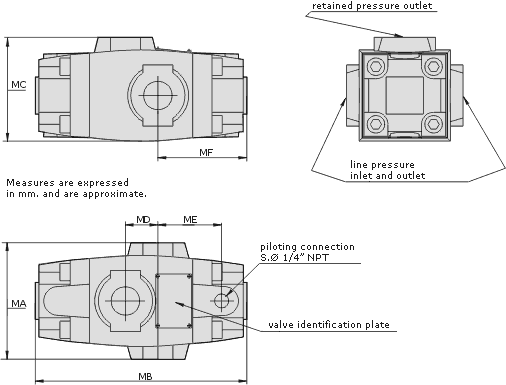

RHC-L-32-#-#
with 3/8" NPT screw
RHC-L-75-#-#
with 3/4" NPT screw
RHC-L-125-#-#
with 1"1/4 BSPT screw
-Board Assembly; three sizes:

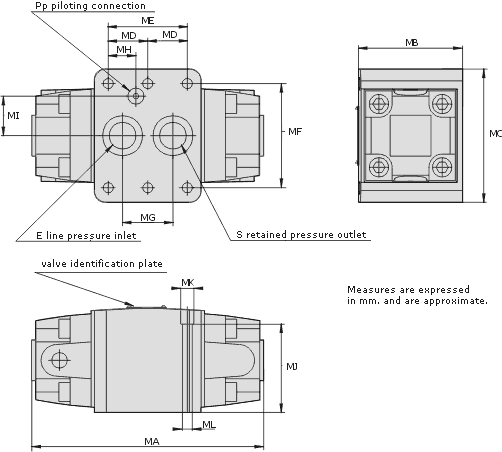

RHC-P-32-#-#
with assembly boards:
PM-RHC-P-32-32-T
PM-RHC-P-32-50-T
RHC-P-75-#-#
with assembly boards:
PM-RHC-P-75-75-T
PM-RHC-P-75-100-T
RHC-P-125-#-#
with assembly boards:
PM-RHC-P-125-125-T
PM-RHC-P-125-150-T
- Three opening pressures in free-flow mode,
for each valve model.
- Suitable to work with flow volumes up to
46, 114 and 265 l/min. Pressures up to 285
Kg/cm², according to the model.
