	Simple retention valves
	Line assembly. Models 32, 50, 75, 100, 125 and 150. Sizes: 3/8”, 1/2” and 3/4” NPS, 1”NPT and 1”1/2 BSPT.



	Line retention valves are very easily applied in hydraulic circuits, since they can be assembled without interrupting the pipeline. Due to their designed, they offer a quick closing response, even in the most adverse working conditions. However, these valves are not advisable for systems where it is necessary to operate with high-speed flow volumes. Their maximum work pressure is 320 Kg/cm².

RH-L-32-# / RH-L-75-# / RH-L-100-# / RH-L-125-# / RH-L-150-#

HYDRAULIC SCHEME

CODIFICATION

FREE FLOW OPENING PRESSURE (Kg/cm²)
N	0,35
M	2,11
P	4,57

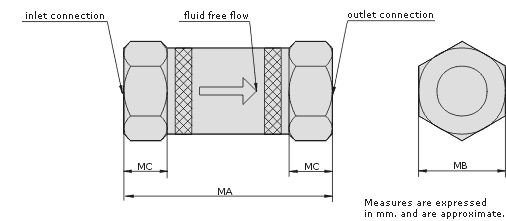

MODEL	MA	MB	MC	FLOW VOL. (l/min)	WEIGHT (Kg)	CONNECTION
RH-L-32-#	64	25,4	13	30	0,2	Ø 3/8" NPS
RH-L-50-#	77	32	16	51	0,32	Ø 1/2" NPS
RH-L-75-#	103	38	20	76	0,5	Ø 3/4" NPS
RH-L-100-#	123	50,8	25	120	1,4	Ø 1" NPT
RH-L-125-#	133	63	25	190	2	Ø 1"1/4 BSPT
RH-L-150-#	133	63	25	190	2	Ø 1"1/2 BSPT
