  Simple piloted retention valves
  Line assembly. Models 25, 32, 50, 75. Sizes: 1/4”, 3/8”, 1/2” and 3/4” BSP.




These simple piloted retention valves vrsp-model enable free flow in one sense. The pilot should work in the opposite sense so that the fluid flows freely. When the pilot pressure is released, it works as a normal unidirectional retention valve. A conical guided float blocks the fluid in the opposite sense thus enabling a perfect stagnant condition. These valves are manufactured with an iron body while the conical float is made of thermally treated iron.

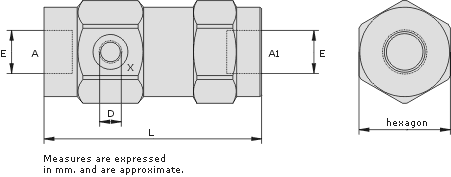

  VRSP-#


HYDRAULIC SCHEME
ORDER CODE:




MODEL L EXG. D E MAX. PRESSURE (bar) FLOW VOL. (l/min) WEIGHT (Kg) PILOTING
RATIO
VRSP-25-# 103 36 1/4" BSP 1/4" BSP 350 12 0,6 1 : 9
VRSP-32-# 109 40 1/4" BSP 3/8" BSP 310 30 0,8 1 : 6
VRSP-50-# 120 42 1/4" BSP 1/2" BSP 310 45 0,9 1 : 4,5
VRSP-75-# 131 55 1/4" BSP 3/4" BSP 300 85 2 1 : 3,7
