With
opening limitation. Line and board assembly.
Models 32, 75 and 125. Sizes: 3/8” and
3/4” NPT and 1”1/4 BSPT.
Commanded
retention valves with opening limitation fulfill
all the functions corresponding to RHC-P-#-#-#
and RHC-L-#-#-# models, and additionally,
they offer the possibility to regulate their
opening, thus enabling to regulate the flow
that passes through it. They are fitted with
an external wheel, which must be blocked after
the regulation with the counter-nut, in order
to keep the regulation constant.

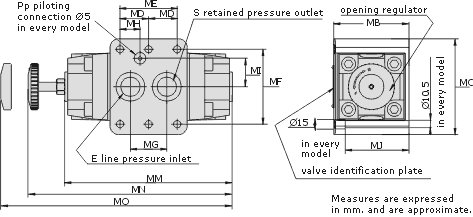

- Three – size board assembly
RHC/LA-P-32-#-# assemble boards PM-RHC-P-32-32-T
/ PM-RHC-P-32-50-T
RHC/LA-P-75-#-# assemble boards PM-RHC-P-75-75-T
/ PM-RHC-P-75-100-T
RHC/LA-P-125-#-# assemble boards PM-RHC-P-125-125-T
/ PM-RHC-P-125-150-T

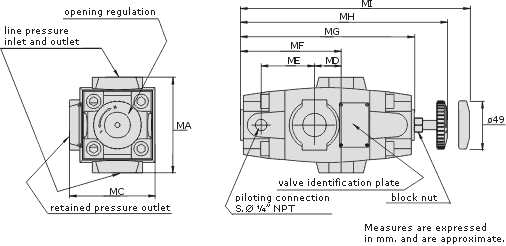

- Three – size line assembly
RHC/LA-L-32-#-# with 3/8" NPT screw
RHC/LA-L-75-#-# with 3/4" NPT screw
RHC/LA-125-L-#-# with 1"1/4 BSPT screw
- Three opening pressures in free flow mode
for each valve model.
- Suitable to operate with flow volumes up
to 46, 114 and 265 l/min and pressures up
to 285 Kg/cm² respectively.
