  Flow control valves. Construction in angle
  Line Assembly. Models 32 and 75. Sizes 3/8" and 3/4" NPT.





These valves have a wide scope of usage, where no hydrostatic or thermal compensation is required.



- - Two sizes:
VCC-32, connection 3/8” NPT
VCC-75 connection 3/4” NPT
- Suitable to operate with flow volumes up to 60 l/min. and 120 l/min. respectively.
- Maximum pressure of 220 Kg/cm².



  VCC-#


HYDRAULIC SCHEME
ORDER CODE:





SIZE

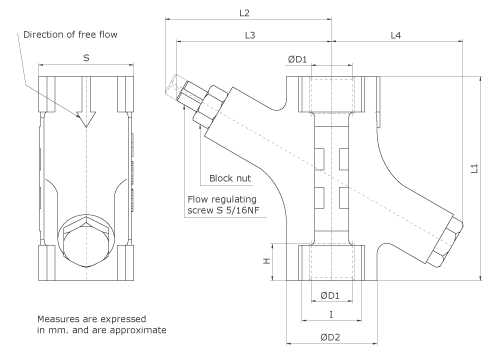

 L1 L2 L3 L4 I S H Ø D2 D1 FLOW VOLUME
(l/min)		 PRESSURE
(Kg/cm²) 		WEIGHT
(Kg.)
32 73 65 55 48 19 33 11 33 S Ø 3/8" NPT 38 220 0,460
75 91 70 60 48 32 46 15 45 S Ø 3/4" NPT 76 0,930
