  Flow control valve
  3-ways priority. With or without maximum pressure valve. Line assembly.




These valves have a bar pressure controlled and compensated priority system. This assures a priority constant flow volume and enables using the exceeding flow for a second circuit or draining it in a regulated way to the tank. This valve is offered in two models: with or without pressure regulation valve.



- Three pressure ranges:
1: 50 kg/cm2
2: 140 kg/cm2
3: 250 kg/cm2
- Complete filtration: 25 microns.



  VRCP-3V


HYDRAULIC SCHEME
ORDER CODE:




CONNECTIONS
FLOW VOLUME
(l/min)
PRESSURE
(Kg/cm²)
WEIGHT
(Kg.)
COMPLETE FILTRATION
P = Ø 3/4" BSP
80
350
1,8
25
B/C = Ø 1/2" BSP
50
350
25
T = Ø 1/2" BSP
50
350
25

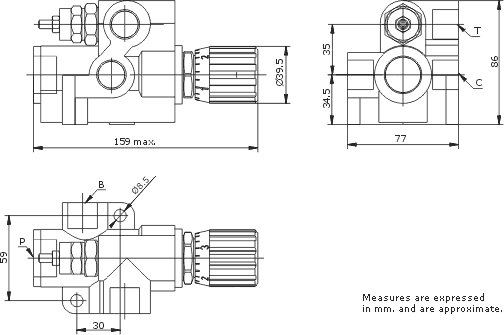

  VRCP-3V+RP-#


HYDRAULIC SCHEME
ORDER CODE:




CONNECTIONS
FLOW VOLUME
(l/min)
PRESSURE
(Kg/cm²)
WEIGHT
(Kg.)
COMPLETE FILTRATION
P = Ø 3/4" BSP 80 350 2,05 25
B/C = Ø 1/2" BSP 50 350 25
T = Ø 1/2" BSP 50 350 25
