Remote
control. Line and board assembly. Model: 25.
Size: 1/4” NPT.
These
valves are suitable for remote piloting of
pressure and exhaust ones or pressure reducing
valves. They can also be used as safety elements
combined with balanced-piston-kind valves,
or when these are at inaccessible places.
Using these valves as main regulating ones
is not recommended.
-
Two versions of these valves are available:
line and board assembly.
- Two models of each kind is produced with
the following pressure ranges:
CR-L-25-B (10 - 80 Kg/cm²) > CR-L-25-F
(15 - 210 Kg/cm²).
CR-P-25-B (10 - 80 Kg/cm²) > CR-P-25-F
(15 - 210 Kg/cm²).
- Every model can function with a 4 l/min
maximum flow of volume.

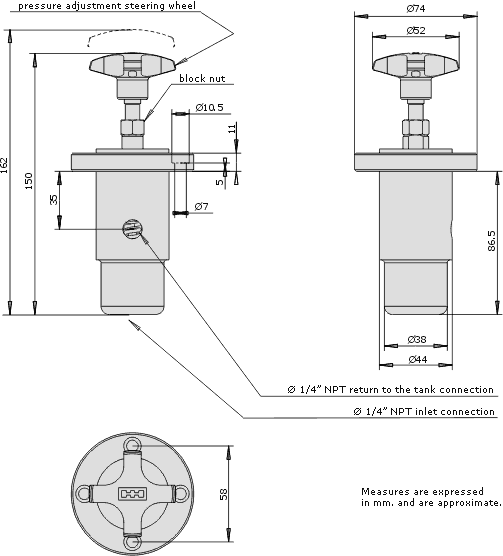

- In line assembly versions, the connections
are equal to 1/4” NPT P and T.

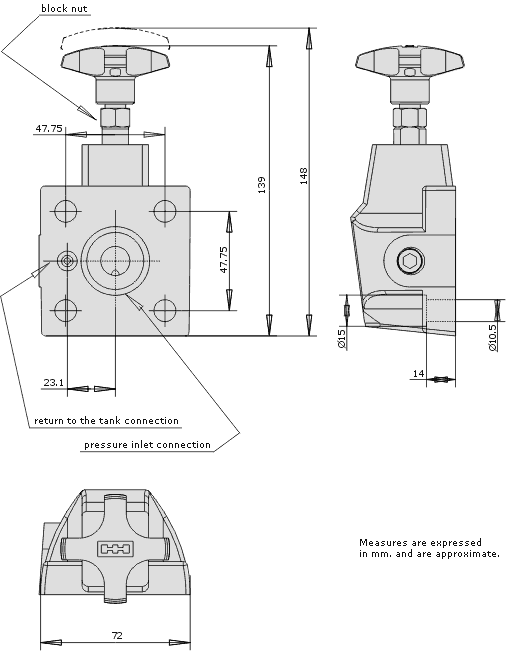

- In board assembly versions, the boards have
connections equal to 1/4” NPT.
