Line and Board Assembly. Models 32, 75 and
125. Sizes: 3/8” and 3/4” NPT
and 1”1/4 BSPT.
Several
configurations of this basic valve are offered
due to a position change in the top. These
valves are used for discharge control and
hydraulic system sequence produced by a direct
or remote pressure increase. These valves
are manufactured in three different sizes
and two versions: line or board assembly,
and each one of these models has two kinds
of pressure ranges.

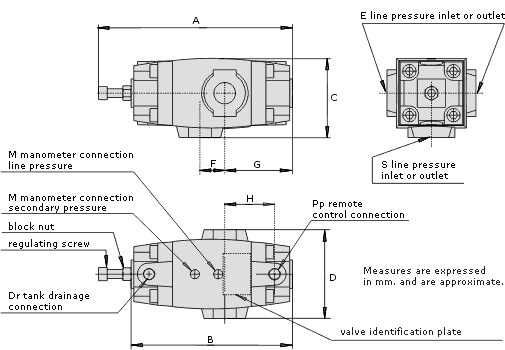

- Two kinds of assembly:
Line assembly, three sizes:
VS-L-32-#-# - 3/8” NPT connection.
VS-L-75-#-# - 3/4” NPT connection.
VS-L-125-#-# - 1” 1/4 BSPT connection.
Board assembly, three sizes:
VS-P-32 -#-# Board connection 3/8” and
1/2” NPT.
VS-P-75-#-# Board connection 3/4” and
1 ” NPT.
VS-P-125-#-# Board connection 1” 1/4
and 1" 1/2 BSPT.
- Four Types:
Types 1: Internally operated; internal piloting
and drainage.
Types 2: Sequence valve; internal piloting
and external drainage.
Types 3: Discharge valve; external piloting
and drainage.
Types 4: Remote control; external piloting
and internal drainage.
