Line and board assembly. Models 32, 75 and
125. Sizes: 3/8” and 3/4” NPT
and 1” 1/4 BSPT.
Counterbalance valves are used for the control,
discharge and sequencing within a hydraulic
system, induced by a direct of remote pressure
increase. They are available in three sizes
for line assembly, and three sizes for board
assembly.
Each model is manufactured with two pressure
ranges: B > 10 - 80 Kg/cm² - F >
15 - 210 Kg/cm².

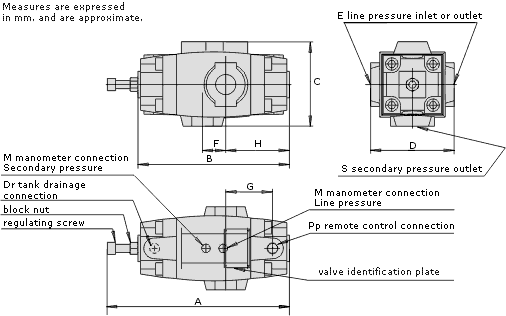

- Two kinds of assembly:
Line assembly; three sizes:
VS-LR-32-#-# - 3/8” NPT connection.
VS-LR-75-#-# - 3/4” NPT connection.
VS-LR-125-#-# - 1” 1/4 BSPT connection.
Board assembly; three sizes:
VS-PR-32 -#-# Board Connection 3/8”
and 1/2” NPT.
VS-PR-75-#-# Board Connection 3/4” and
1 ” NPT.
VS-PR-125-#-# Board Connection 1” 1/4
and 1" 1/2 BSPT.
- Four types:
Type 1: Balance valve. Internal piloting and
drainage.
Type 2: Sequence valve. Internal piloting
and external drainage.
Type 3: Sequence valve. External piloting
and drainage.
Type 4: Balance valve. External piloting and
internal drainage.
