Line and board assembly. Models 32, 75 and
125. Sizes: 3/8” and 3/4” NPT
and 1” 1/4 BSPT.
Piloted
pressure reduction valves guarantee a minimum
variation of the regulated pressure by flow
volume variation. They are normally provided
with internal piloting and external drainage;
they are available in three sizes and two
models, line and board assembly and two regulation
ranges for each size and model.
- Two kinds of assembly:

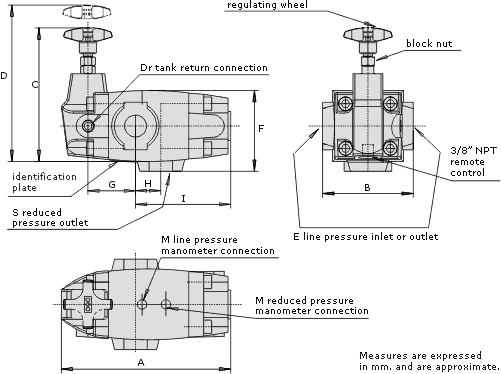

- Line assembly. Three sizes:
VR-L-32-#-# - 3/8” NPT connection.
VR-L-75-#-# - 3/4” NPT connection.
VR-L-125-#-# - 1” 1/4 BSPT connection.

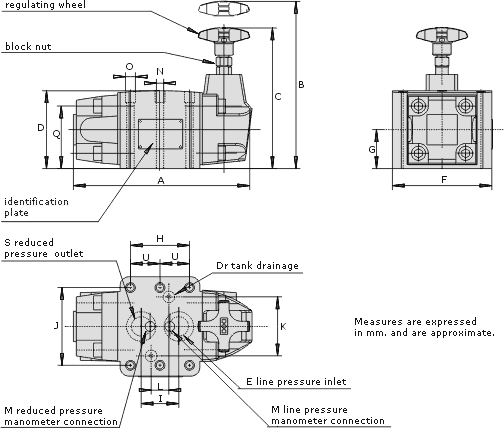

- Board assembly. Three sizes:
VR-P-32 -#-# Board Connection 3/8” and
1/2” NPT.
VR-P-75-#-# Board Connection 3/4” and
1 ” NPT.
VR-P-125-#-# Board Connection 1” 1/4
and 1" 1/2 BSPT.
-They are suitable to operate with flow volumes
up to 50, 115 and 285 l/min and pressures
up to 210 kg/cm² respectively.
- Two pressure ranges for each size:
B >10 - 80 Kg/cm² and F > 15 -
210 Kg/cm².
