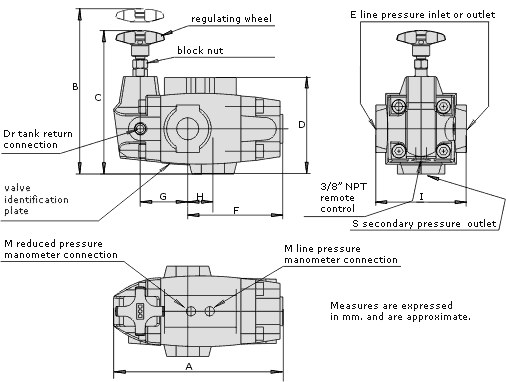

Line and board assembly. Models 32, 75 and
125. Sizes 3/8” and 3/4” NPT and
1” 1/4 BSPT.
This
valve is used to reduce pressure in a sector
of the circuit or in a supply channel to an
actuator with free return carried out by the
retention valve.
Said valve guarantees a constant pressure
inferior to the supply, independently of the
inlet pressure variation.
- Two
pressure ranges for each model:
B = 10 > 80 Kg/cm²
F = 15 > 210 Kg/cm²
-Broad range of flow volumes according to
the model:
VR-#R-32-# 50 l/min
VR-#R-75-# 115 l/min
VR-#R-125-# 285 l/min
-All flow volumes are suitable to operate
with a maximum inlet and outlet pressure of
210 Kg/cm²
