These
valves are single-state pressure and safety
regulators for small flow volumes, in which
the pressure variation is carried out through
the coil compression or expansion with regulation
steering wheel.
They may also be used as remote pilot valves
for valves with higher flow volumes, such
as pressure and exhaust regulating valves
as well as pressure reducing valves. They
may be assembled on panel.
- - Maximum pressure according to adjustable
ranges.
- Maximum flow volumes equal to 12 l/min for
all models.
- Mineral hydraulic oil, emulsifier (water-oil)
glycol may be used in every model.

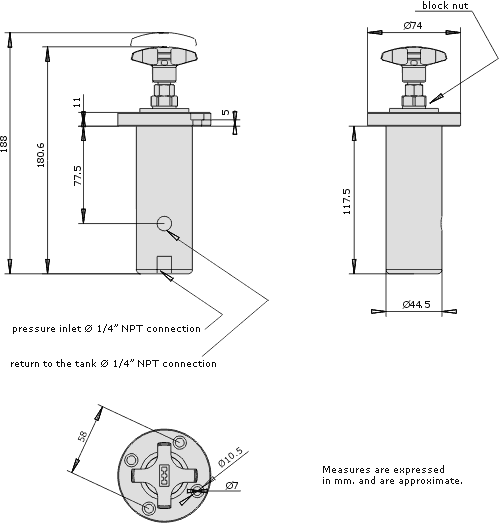

- Panel assembly.
- P and T 1/4” NPT connections.
- Maximum pressure equal to 210 Kg/cm².
