Line
and board assembly. Models: 32, 75 and 125.
Sizes: 3/8” and 3/4” NPT and 1”
1/4 BSPT.
Double-state safety and exhaust valve with
balanced piston available in three sizes and
two models of each size, line and board assembly.
In each version a remote control connection
is supplied, for example, for the purpose
of exhausting the circuit by means of a needle
valve, controlling an inferior pressure through
CR-#-25-# valves, connecting a solenoid valve
to activate or disconnect it.

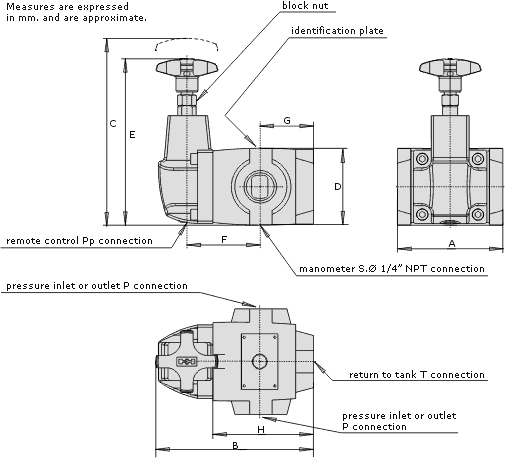

- Three line assembly sizes, models:
RP-L-32-# with 3/8” NPT and 1/2”
NPT connections thread.
RP-L-75-# with 3/4” NPT and 1”
NPT connections thread.
RP-L-125-# with 1” 1/4 BSPT and 1”
1/2 BSPT connections thread.

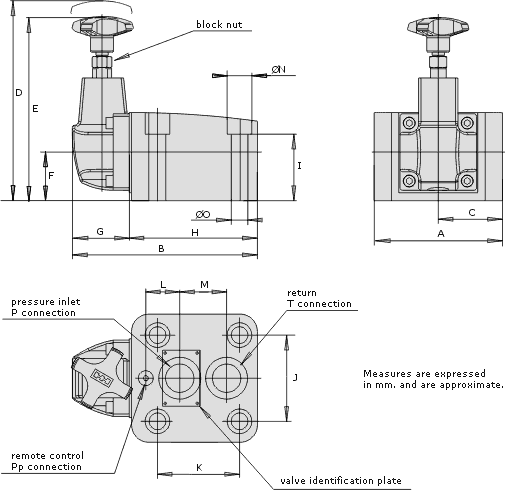

- Three board assembly sizes:
RP-P-32-# with 3/8” NPT and 1/2”
NPT board connections threads.
RP-P-75-# with 3/4” NPT and 1”
NPT board connections threads.
RP-P-125-# with 1” 1/4 BSPT and 1”
1/2 BSPT board connections threads.
- Two pressure ranges for each model:
B > between 10 – 80 Kg/cm²
F > between 15 – 210 Kg/cm²
- Maximum volumes of flow for each model:
RP-#-32-# > 85 l/min
RP-#-75-# > 220 l/min
RP-#-125-# > 457 l/min
