Solenoid
operated valves. Simple and double coil return.
Board assembly. Model 70. Size CETOP 7 NG
16.
The
#-SPH-70-#-# are piloted rod-operated directional
control valves (operated by a direct action
electro-valve or an external pilot).
They are compatible with most industrial demands,
enabling considerable flow volume and high
pressure.

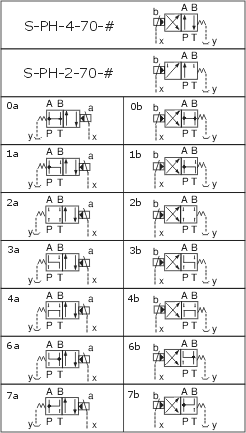

This model is manufactured with two, three
and four channels in the following version:
- Two positions (stable) without coil –
two actuators.

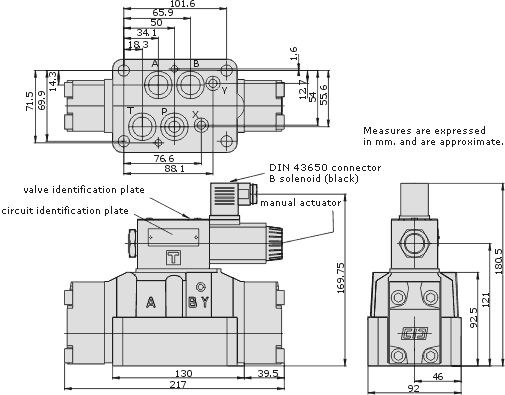

- Two positions with coil return – one
actuator.

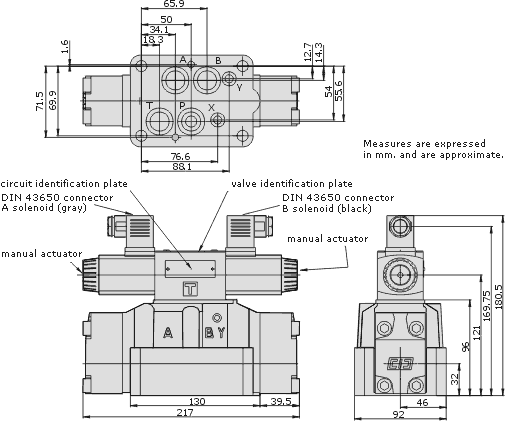

- Three positions coil centered – two
actuators.
These versions combined with the widest range
of rods and devices enable to meet any demand
in the development of a hydraulic circuit.
- Supports great pressure and high flow volume.
- Reduces charge loss.
- Enables swift rod commutation.
- Uses board assembly according to CETOP 4.2-07-320,
e/o UNI ISO 4401-AD-07-4-A.
- Is suitable to operate with flow volumes
up to 250l/min and pressures up to 320kg/cm²
according to the kind of fluid and rod.
