Solenoid

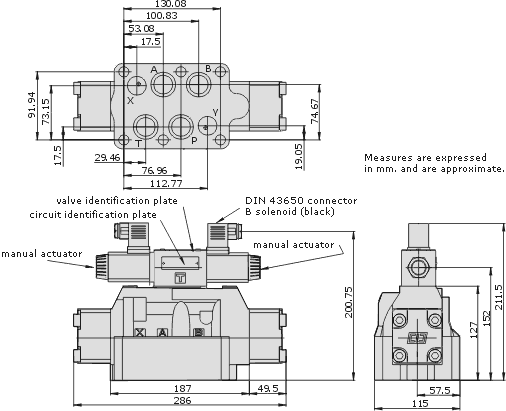

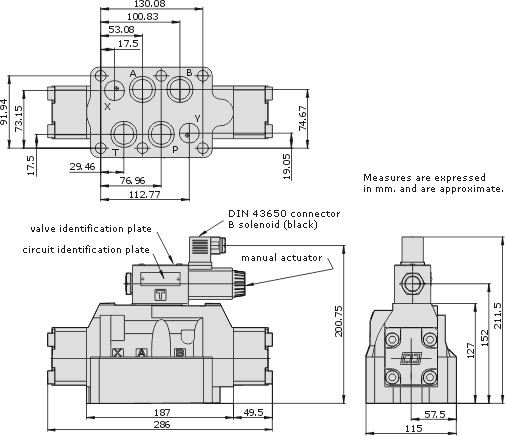

operated valves. Simple and double coil return.
Board assembly. Model 100. Size CETOP 8 NG
25.

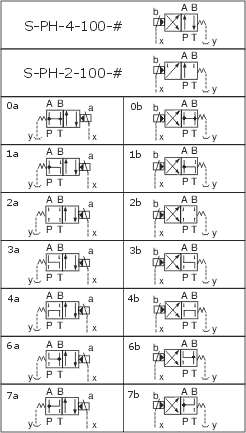

Directional valves #-SPH-#-100-#-# are conformed
by two elements: a pilot valve and a main
body, thus they enable to transmit the piloting
order with different alternatives: pressure
reduction, and / or flow volume control for
a swift commutation; stroke control on the
main rod to achieve flow volume regulation
in one or both channels, on the movement of
a cylinder or the rotation of a hydraulic
engine within a system. This model is used
to control considerable flow volumes and high
pressures with reduced pressure decrease.
-Electric options including all
kinds of induction coils which enable high
reliability in any kind of application within
a system.
- Available with a wide range of versions
for assembly, rods, pilot valves and main
rod stroke adjustment.
- Board assembly according to CETOP 4.2-4-08-320
e/o, UNI ISO 4401 AE-08-4-A.
- Quick and standard spare-parts bring about
a reduced stock of the models available.
Suitable to operate with flow volumes up
to 530 l/min and pressures up to 280 kg/cm²
according to the fluid and kind of rod.
