These valves are used in order to control
the activation speed of an actuator, or
to control the commutation speed in piloted
directional valves.
Its activation allows changing the direction
of flow volume, which lets the free passage
in the opposite direction.

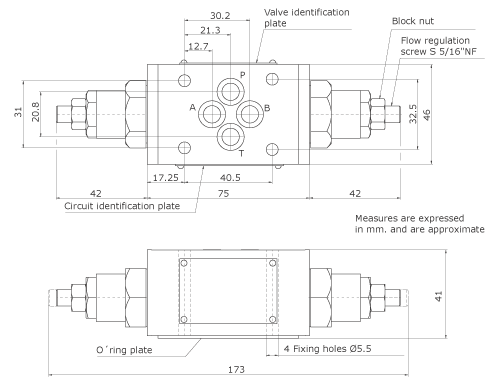

- Double version without hydraulic counteraction.
- Modular assembly system capable of being
concatenated.
- Suitable to handle reasonably huge flow
volumes, with a minimum load loss.
- Inlet and outlet regulation from the actuator
to be controlled.
- Suitable to operate with flow volumes up
to 40 l/min. and maximum pressures up to 320
kg/cm².
