Combined
pressure control valves
(1 zero pressure + 2 controlled pressures
or 2 controlled pressures)
Line and board assembly. Models 75 and 125.
Sizes: 3/4” NPT and 1” 1/4 BSPT.
Combined
pressure regulating valves tend to solve an
endless number of contingency situations that
appear in hydraulic systems. The RPC-#-##-#-2PC-#
models can be combined with a SH-4-12-# valve,
thus obtaining two controlled pressures, one
without activating the solenoid and another

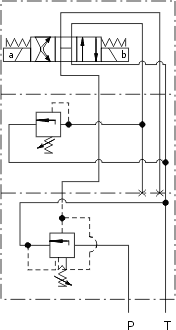

one with an activated solenoid. The RPC-#-##-3P
model is the same regulating valve combined
with a directional valve 2-SH-4-12-0-# model,
which enables to obtain three independent
controls: one without activating any solenoid,
the pump returns to the tank avoiding an overload
in the circuit. When either solenoid is activated,
the valve acquires the value to which it was
manually regulated in its corresponding control.
-
For the RPC-#-#-#-2PC-# model:
Deactivated solenoid – body 1 regulation
(solenoid side).
Activated solenoid – body 2 regulation
(opposite to the solenoid).

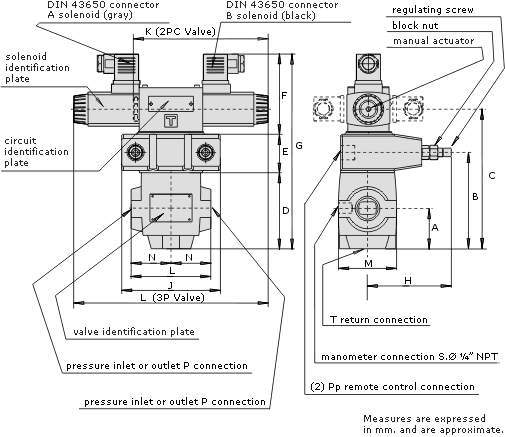

- Two models on line:
RPC-L-75-#-2PC-# with 3/4” and 1”
NPT screws.
RPC-L-125-#-2PC-# with 1” 1/4 and 1"
1/2 BSPT screws.

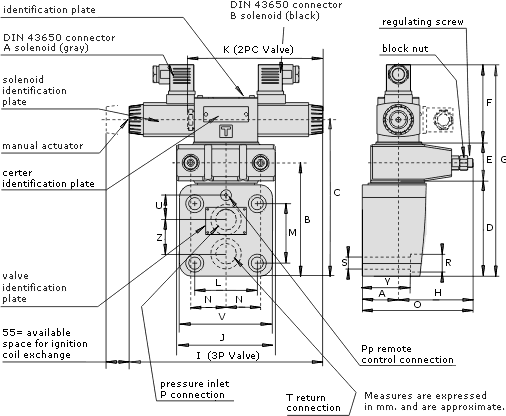

- Two models on board:
RPC-L-75-#-2PC-# with assembly boards - 3/4”
and 1” NPT screws.
RPC-L-125-#-2PC-# with assembly boards - 1”
1/4 and 1” 1/2 BSPT screws.
- For the RPC-#-#-#-3P-# model:
Without activating any solenoid, pump or tank.
A solenoid activated – body 2 regulation
(opposite to a solenoid).
B solenoid activated – body 1 regulation
(opposite to b solenoid).
- Two models in line:
RPC-L-75-#-3P-# with 3/4” and 1”
NPT screws.
RPC-L-125-#-3P-# with 1” 1/4 and 1”
1/2 BSPT screws.
- Two models on board:
RPC-L-75-#-3P-# with assembly boards - 3/4”
and 1” NPT screws.
RPC-L-125-#-3P-# with assembly boards - 1”
1/4 and 1” 1/2 BSPT screws.
