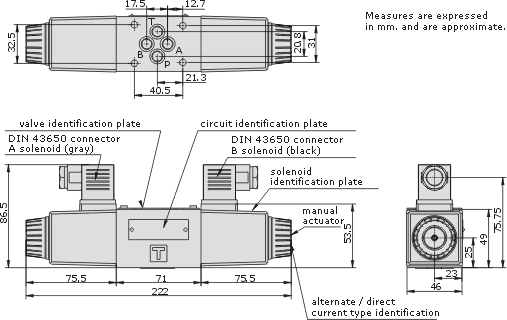

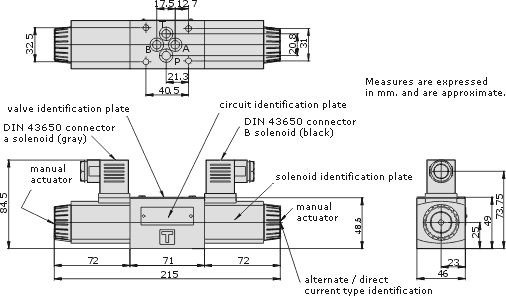

Simple
and double solenoid. Board assembly. Model
12. Size: CETOP 3 NG 6.

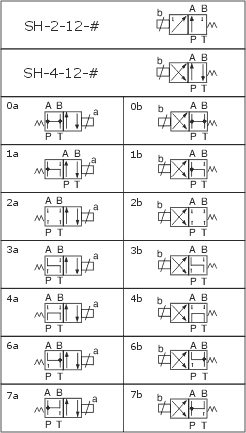

Directional
Control Valves #-SH-#-12-#-# Series are used
to conduct or stop flow at any sector within
the hydraulic circuit.

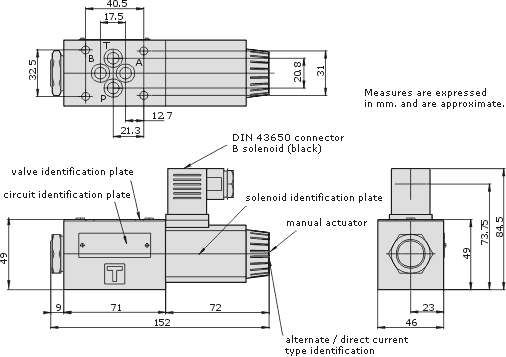

The solenoid nucleus is screwed to the body
of the valve, while the induction coil is
fixed with a nut so that it can be easily
removed. The internal conducts of the body
and the rods optimized design enable an important
flow, with a minimum pressure differential
for this valve size.
Electric actuators or solenoids are offered
in standardized tensions and frequencies,
while its protection fulfils the IP-65 e IEC-144
standards, H class insulator and F class encapsulation.
Electric connections are carried out by means
of DIN 43650 connectors and the electromagnets
are identified by the same standard.
-
Effective control without increasing solenoid
consumption.
- Installation cost and space reduction.
- Circuit effectiveness increase.
- Flexible installation of a wide range of
combinations, modular valves and multiple
boards.
- Induction coils can be rapidly and easily
modified without any leak from the hydraulic
system.
- Internationally compatible standard boards,
according to ISO 4401, Size 03. Suitable to
operate with a volume of flow up to 40 l/min
and pressures up to 320 kg/cm².
