Direct.
Board assembly. Models: 5, 12 y 25. Size:
CETOP 3 NG 6 and CETOP 5 NG 10.
The
HM-5-#-#-#-P command valves are rod distributors
commanded by a cam or pise (push). When this
command is made in a radial channel, the action
angle should not exceed 30°. At rest,
the control piston is kept in its original
position by the return coil.
These valves may be used to run, stop or pass
a volume of flow or liquid. The roller actuator
is available in two positions turned to 90°,
both of which are achieved very easily.
- Two-positions coil-return option available
- Direct-command rod distributor by means
of a roller actuator.
- Compatible standard board assembly according
to CETOP 3 NG 6 and CETOP 5 NG 10.
- Capable of functioning with up to 40 and
80 l/min flow volumes and up to 350 and 210
kg/cm² pressures respectively.

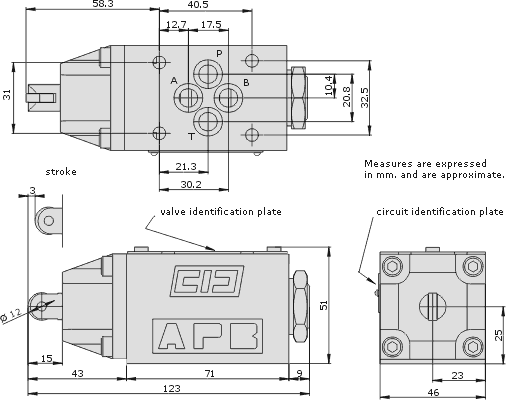

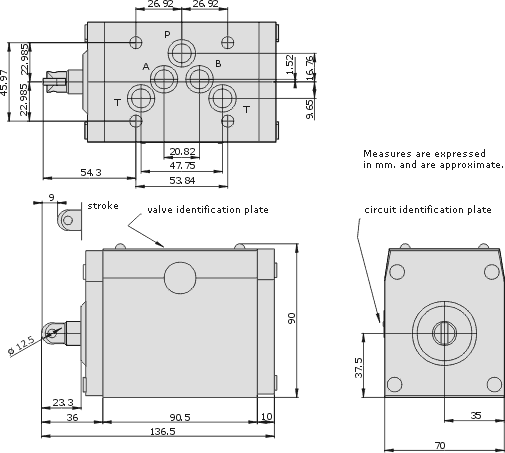

HM-5-12-#-#-P
HYDRAULIC
SCHEME
WEIGHT:
1
Kg.
MAXIMUM
WORK PRESSURE:
350
Kg/cm²
FIXING:
4
Metric screws Ø 5x50. Communication
holes A, B, P, T, Ø 8.
Take
off the assembled top. To
remove the pin,
slide the rod that contains
the wheel from its position
inside the top. Turn the
rod and place the pin in
the alternative position,
in a way that it
coincides with the position
slot .
