Board

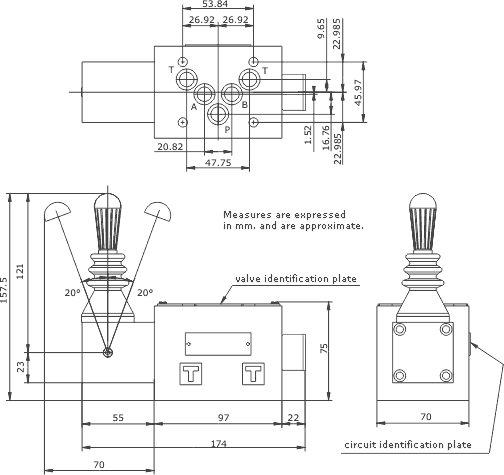

assembly. Models: 17-12 and 17-25. Size: CETOP
3 NG 6 and CETOP 5 NG 10.
These
valves are designed in such a way that their
bodies hold passages of generous dimensions,
while they provide the distributor rod with
six supports. The latter mentioned advantage
allows the usage of completely balanced rods,
without the risk of hydraulic locks or radio
oscillations. These characteristics result
in a product that can deal with a relatively
important high-pressure flow volume, with
low charge leaks, achieving a soft commutation
with few internal escapes and supporting higher
return pressure.
-
Available control variations are:
- Two-positions coil-return option.
- Two retained positions.
- Three positions centered by coil.
- Three retained positions that combine with
eleven kinds of rods.
- Two sizes: CETOP 3 NG 6 and CETOP 5 NG 10.
- Lever in three positions, 90º one from
the other.
- Possibility of modular assembly combined
with a wide range of pressure and flow volume
regulating valves.
- Assembly boards according to ISO 4401 size
03 and ISO 4401 size 05.
- Simple and multiple boards with serial (tandem)
or parallel connections, with different outputs
and connection-screws possibilities.
- Capable of functioning with up to 40/80
l/min flow volumes and up to 320/250 Kg/cm²
pressures respectively according to fluid
and rod.

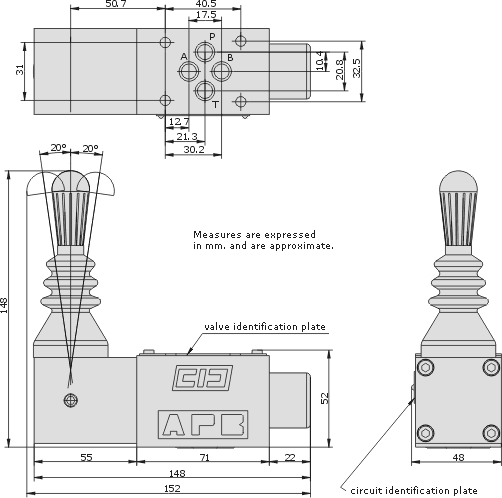

HM-17-12-#-#-P
HYDRAULIC
SCHEME
WEIGHT:
1
Kg.
FIXING:
4
Metric Screws Ø 5 x 50.
Communication holes A, B, P, T,
Ø 8.
