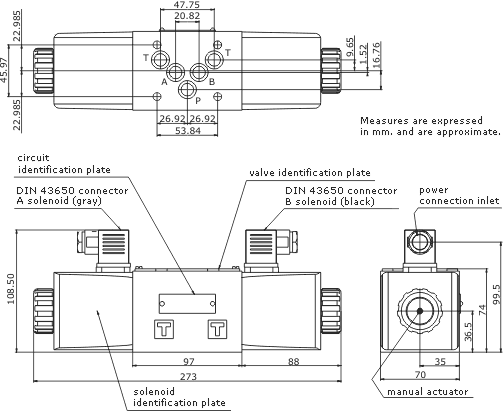

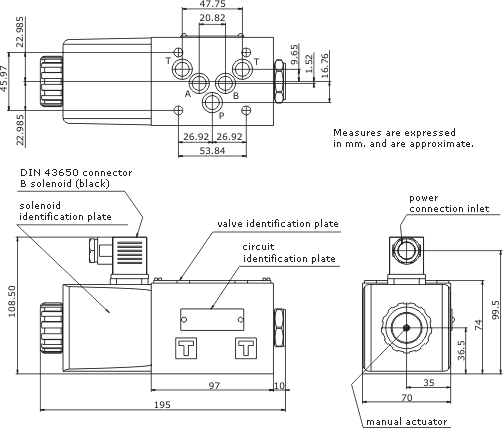

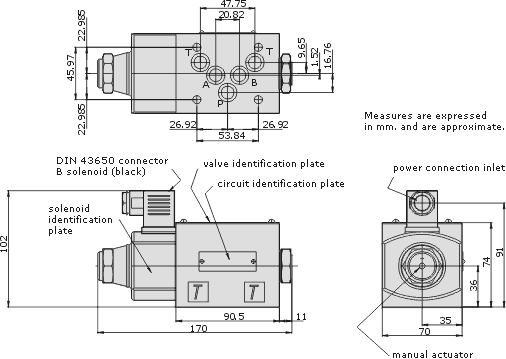

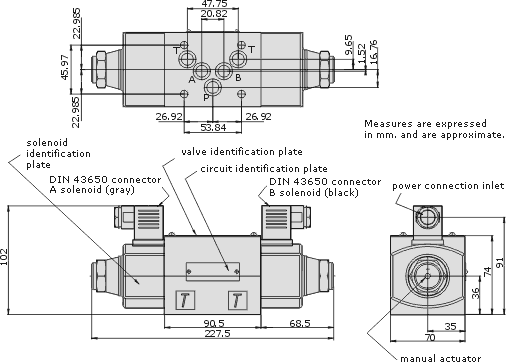

Simple
and double solenoid. Board Assembly. Model
25. Size CETOP 5 NG10.

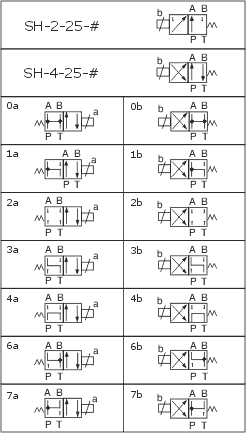

Directional

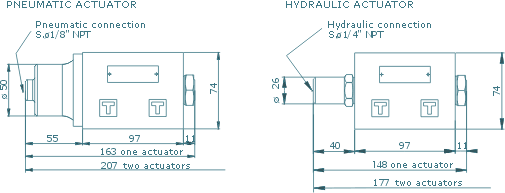

Control valves #-SH-#-25-#-# are operated
through solenoids, hydraulic or pneumatic
actuators, in 2 or 4 channels just as directional
valves. Their main function within a hydraulic
circuit is to conduct the flow volume towards
a linear operator or to control the performance
of an oil-dynamic engine.
Using oil-embedded solenoids enables a safe
construction and a complete elimination of
dynamic locks. The centralized position is
achieved by means of long gauge coils, which
return to the central position or end of stroke,
once the actuator has finished its action.
Solenoids are provided with CC or CA and they
can be replaced by means of a nut, without
any access to the hydraulic system.
-
Capsulated induction coils which are little
sensitive to dampness or dirt.
- Manual actuator in every solenoid model.
- Induction coils, connectors, different currents
and voltages make maintenance simpler.
- Increases the hydraulic system’s effectiveness.
- Multi-fluid option without the need to modify
the lock system.
- Board assembly according to CETOP 5, ISO
4401-05.
- Suitable to operate with flow volumes up
to 80 l/min and pressures up to 250 kg/cm²,
according to the fluid and the kind of rod.
