Modular
assembly. Models 12 and 25. Sizes: CETOP 3
NG 6 and CETOP 5 NG 10.
Modular retention valves are used when it
is necessary to close the pressure or create
pressure in one of the channels of the fluid,
while allowing free flow in the opposite channel.
Said valves are fitted with a float, which
is charged in advance and ensures an unrestricted
flow, with a minimum charge loss.
These valves are available in two different
sizes: CETOP 3 NG 6 and CETOP 5 NG 10. They
are also manufactured for the P and T channels
in only one sense, and on the A and B channels
in both senses. One valve can have one or
two retentions inserted on different channels.
-
Modular assembly – Suitable to link
hydraulic systems together.

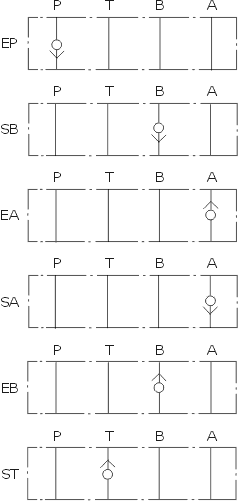

- The available versions are the following:
EP= Retention on the P channel with free flow
towards the valve.
SB= Retention on the B channel with free flow
towards the actuator.
SA= Retention on the A channel with free flow
towards the actuator.
EA= Retention on the A channel with flow retention
towards the actuator.
EB= Retention on the B channel with flow retention
towards the actuator.
ST= Retention on the T channel with free flow
towards the deposit.
-Three different opening pressures in free
flow mode for each model.
-Suitable to operate with flow volumes up
to 40 and 80 l/min and pressures up to 320
kg/cm², respectively.
