Modular
assembly. Models 12 and 25. Sizes: CETOP 3
NG 6 and CETOP 5 NG 10.
Commanded
retention valves with modular assembly can
be either simple or double. These valves prevent
the fluid from flowing in a certain sense,
unless there is a piloting pressure on the
opposite channel so that there is a free backward
movement. Their main purpose is to block an
actuator in one or both channels, according
to the valve applied, either simple or double.
They are supplied in three different assemble
options as shown in the picture and with three
different free flow pressures in each of the
three models. They are manufactured in two
different sizes: CETOP 3/ NG 6 and CETOP 5
/ NG 10 for different flow volumes. The shape
of the tops demonstrate the position of the
retained channel, be it one of them or both.
- The following are the different model for
each size:

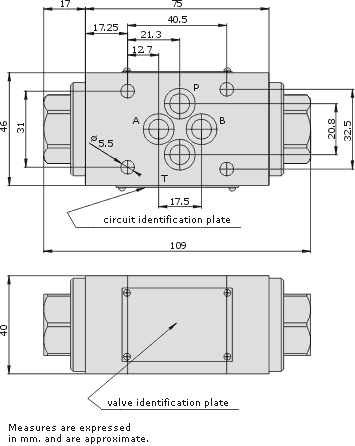

RHC-M-12-#-RA one retained channel (A) CETOP
3 NG 6
RHC-M-12-#-RB one retained channel (B) CETOP
3 NG 6
RHC-M-12-#-RR two retained channels (A y B)
CETOP 3 NG 6

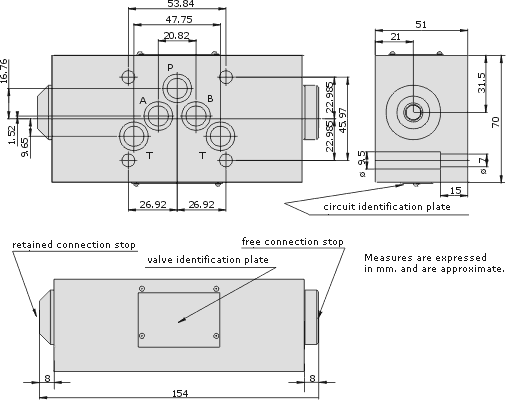

RHC-M-25-#-RA one retained channel (A) CETOP
5 NG 10
RHC-M-25-#-RB one retained channel (B) CETOP
5 NG 10
RHC-M-25-#- RR two retained channels (A y
B) CETOP 5 NG10
- Modular assembly system suitable to combine
hydraulic systems.
- Three opening pressures for free passage
in each model.
- Suitable to operate with up to 40 and 80
l/min and pressures up to 320 kg/cm²
respectively.
