Modular assembly. Models 12 and 25. Sizes:
CETOP 3 NG 6 and CETOP 5 NG 10.
Direct action pressure reduction valves are
cam operated with a coil pre-charged extreme
and the other extreme is exposed to the hydraulic
pressure. When the strength of the pressure
exceeds that of the coil, the cam is displaced
and according to the kind of valve it opens
or closes the oil flow.
The oil drainage is internally connected at
the T channel. They are manufactured in two

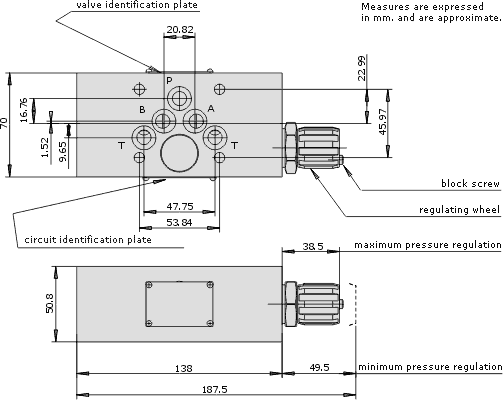

sizes VR-M-12-#-P# CETOP 3 NG 6 and VR-M-25-#-P#
CETOP 5 NG 10 in different models.
-
Modular assembly
- Maximum inlet pressure 320 kg/cm²
- Reduced maximum pressure 250 kg/cm²
- Maximum flow VR-M-12-#-P# 40 l/min
- Assembly surface: CETOP 3 NG 6
- Maximum flow VR-M-25-#-P# 80 l/min
- Assembly surface CETOP 5 NG 10
- Two pressure ranges for each size:
B > 20 - 80 Kg/cm² and F > 50 -
250 Kg/cm²

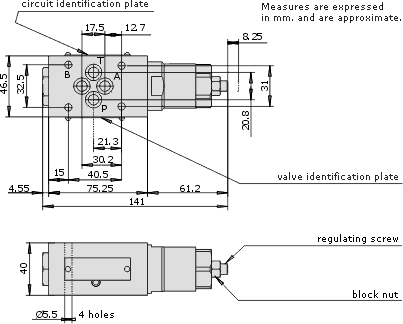

VR-M-12-#-PT
/ VR-M-12-#-PA / VR-M-12-#-PB (CETOP 3 NG
6)
